The importance of supervised monitoring modules used in control and monitoring of extinguishing systems

In many places from chemistry laboratories to industrial facilities, in order to ensure the safety of life and property against a possible fire hazard; In addition to the detection and alarm system, extinguishing systems are also used. According to the conditions of the place; It is extremely important that the extinguishing systems installed in water and/or gaseous nature can be triggered by the fire extinguishing control panel, in order to eliminate a possible fire with early intervention.

In order to meet the needs of such places in the light of its 35 years of sectoral knowledge and experience, Mavi Elektronik;

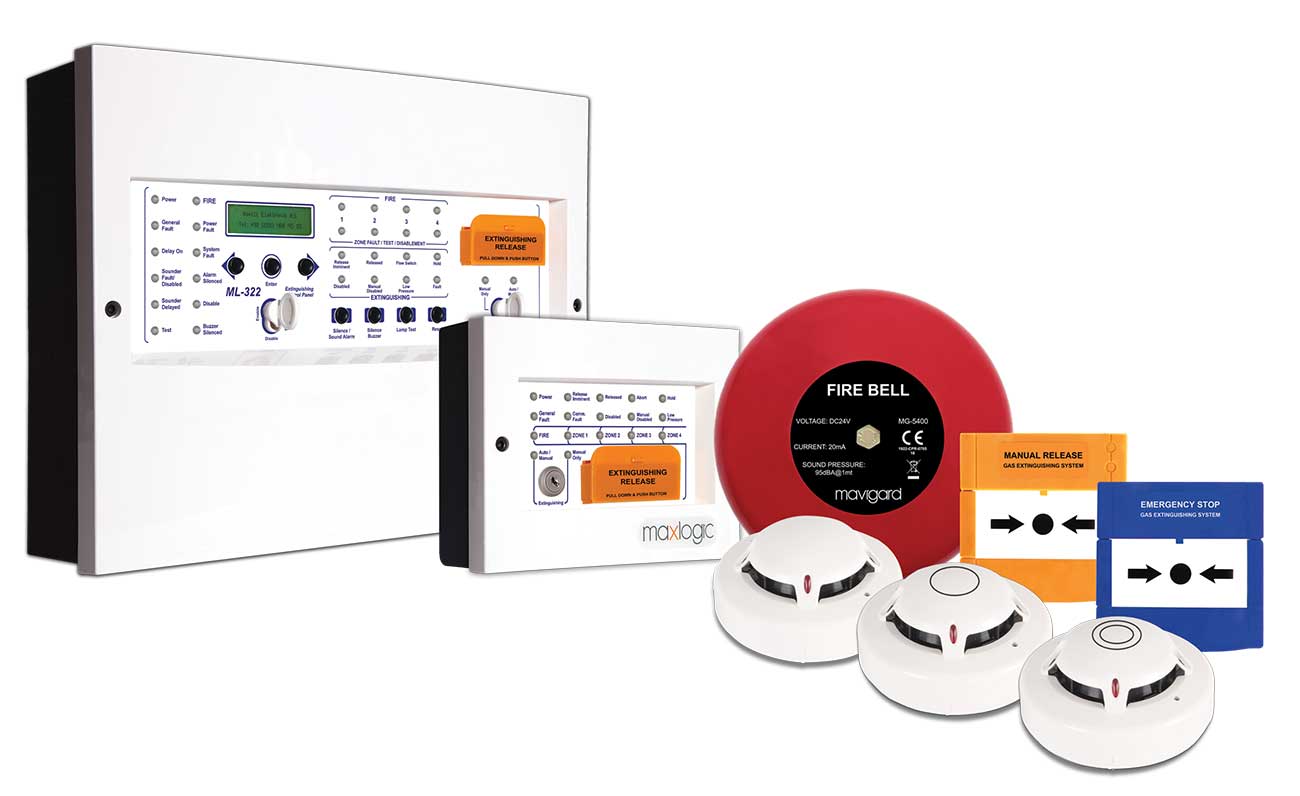

Maxlogic Conventional Fire Extinguishing Control Panel operating according to the cross-zone detection principle
Maxlogic Extinguishing Status Indicator Unit, which allows the remote performance of the indicators and controls on the Control Panel
Maxlogic Extinguishing Output Expansion Panel
Maxlogic Extinguishant Manual Release Button, which allows the extinguishing process to be started manually and remotely
In order to ensure that the extinguishing process can be paused; Maxlogic has produced the Extinguishant Emergency Stop Button

With all these devices produced with surface mounting technology, it is aimed to make the automation of the extinguishing system and fire and gas detection system perfect.

Mavili Elektronik, which develops its products by always considering the needs of the place, in cases that require the integration of the extinguishing system used into the intelligent addressable fire detection system; It provides solutions through the monitoring modules that also have a “supervised” option.

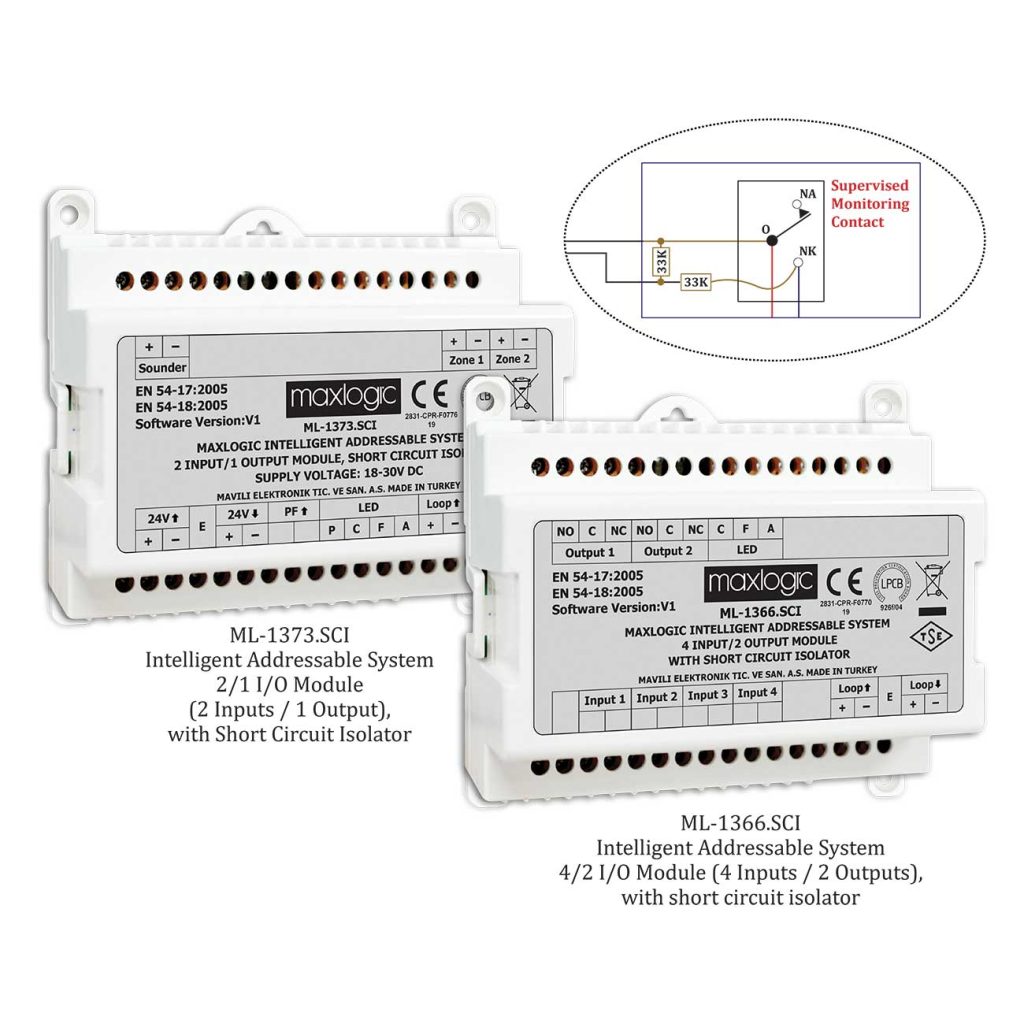

Supervised monitoring modules; plays an important role in controlling the continuity of the cable connection between the loop and the extinguishing system. Failure to detect a possible open or short circuit in the wiring between the contact monitoring modules and the peripheral systems; can cause disruption of the triggering, delayed or not realization of the intervention, resulting in critical consequences. For this reason, when choosing monitoring modules, it should be taken into account that they have supervised features.

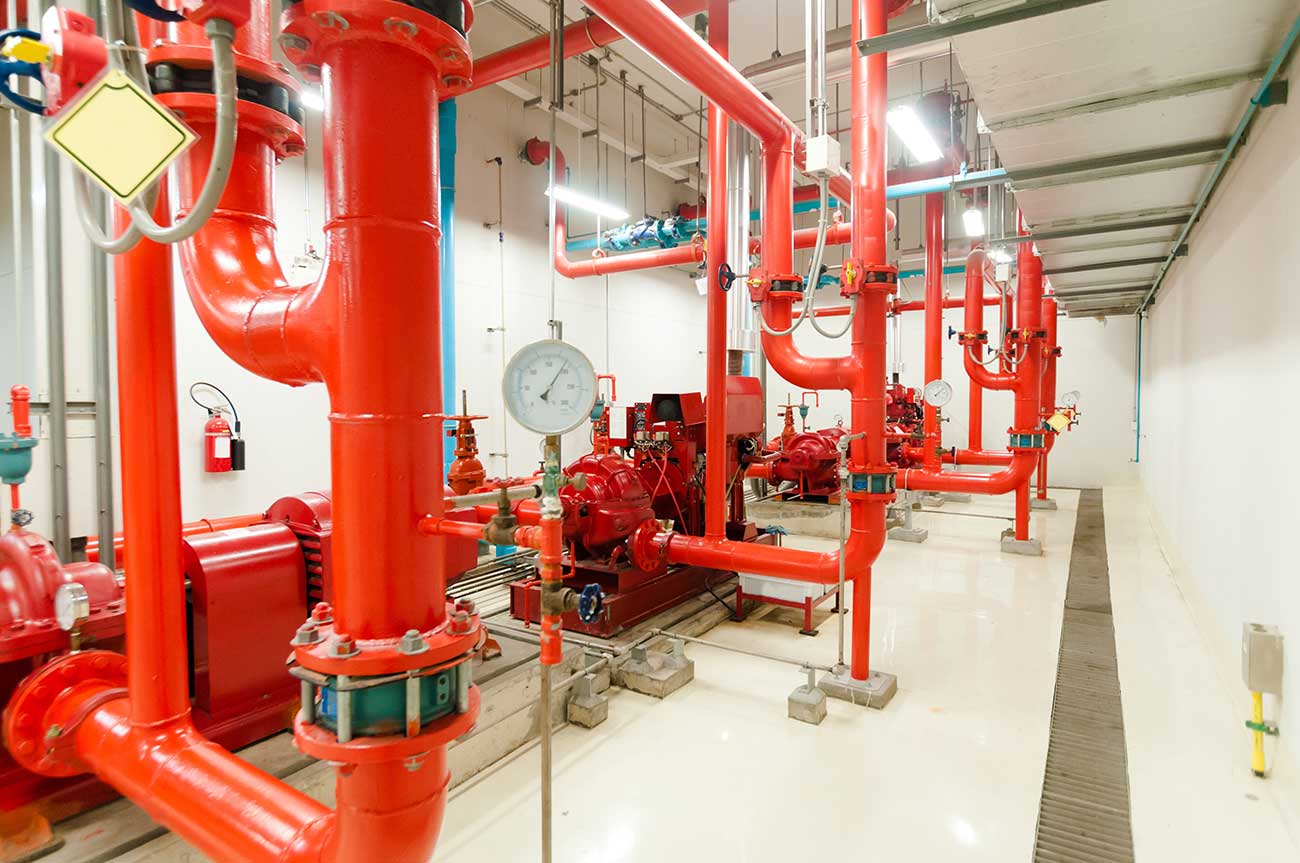

Since Maxlogic intelligent addressable fire detection and alarm control panels are constantly communicating with “supervize” contact monitoring modules connected to cable loops and compliant with EN 54-17 and EN 54-18 standards, it makes it easier to monitor situations such as open circuits and short circuits that may occur in the system. Many tasks can be performed in the fire extinguishing installation, such as the control and monitoring of all valves that can interrupt the flow of water, water flow alarm switches, pressure switch, electric or diesel fire pumps.

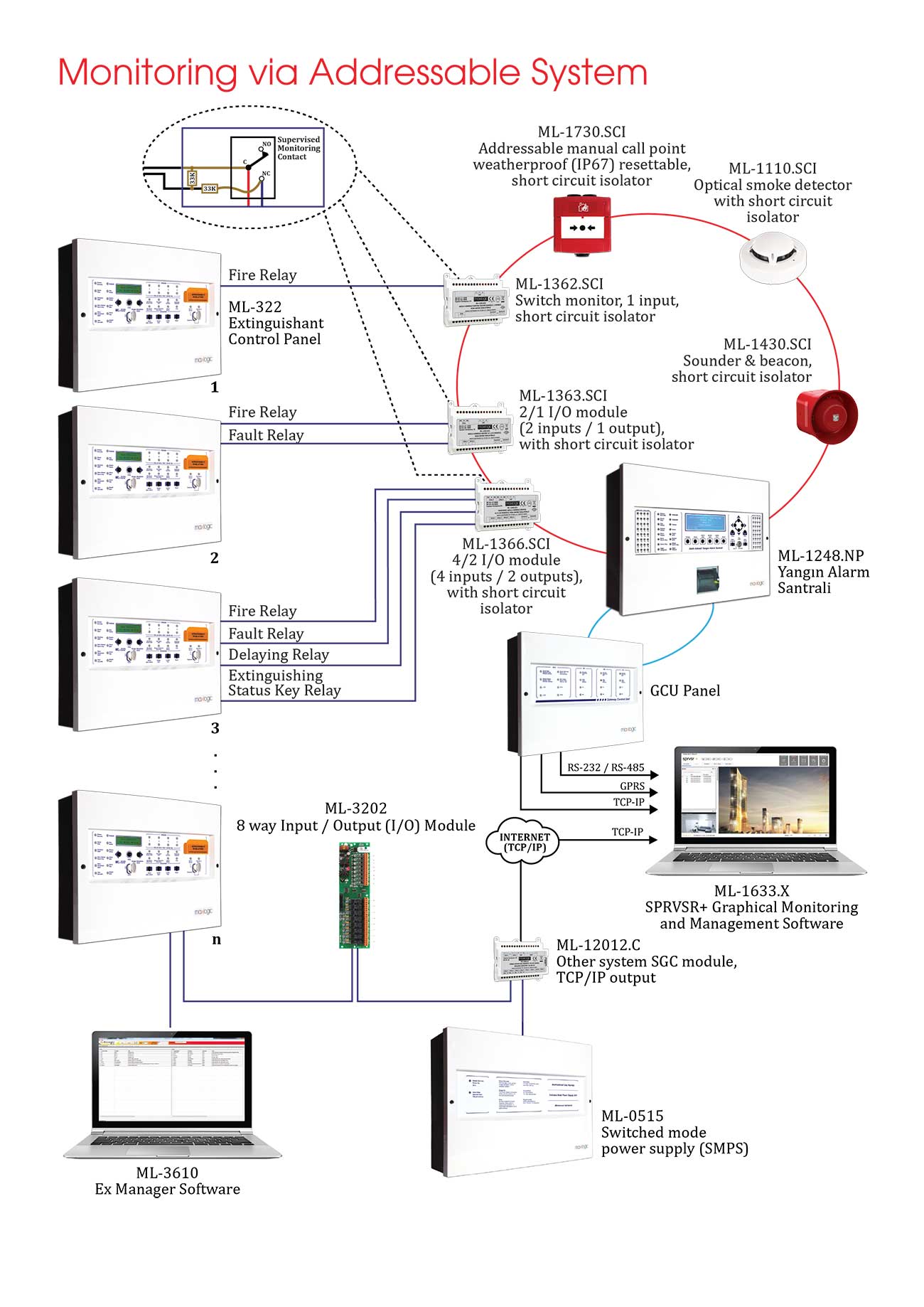

By adding two contact monitoring modules to two separate relay outputs located above the Maxlogic Conventional Fire Extinguishing Control Panel, one of the modules can be used to control errors and the other to control the fire situation, monitoring and control of the extinguishing system via an intelligent addressable fire detection and alarm system can be performed effectively.
