When the serious discussions started around 2010 about high-performance fluorine-free foams (long before we had added the acronyms of SFFF, PFF, FFF or even NFF) one of the common lines we heard from the industry was that foams without fluorochemicals were ‘nothing new’.
As a statement this was entirely correct as pure protein foams were around before the invention of AFFF, and then when synthetic chemicals started to be used, we introduced dedicated Class A foams and multi-purpose (detergent) synthetic foams that could be deployed as low-expansion foams even if they were developed primarily as medium- or high-expansion foams.
The fact remains that since the 1960s firefighting foams have been manufactured based on PFAS containing1 fluorochemicals, and by 2000 these PFAS containing foams would make up more than 90% of foam sales globally. Two characteristics of the fluorochemicals made them particularly attractive to the foam manufacturers.
Firstly, these chemicals were oleophobic, which basically meant that they did not want to ‘mix’ with the hydrocarbon chemicals in the fuels and tended to resist or repel the fuel from the outer wall of the bubbles. In firefighting terms this meant that the bubbles did not pick up the fuel when the foam was directed onto a burning fuel surface.
Secondly, the fluorosurfactants in the foams impacted what is known as the interfacial tension at the fuel/foam interface and this leads to the creation of an aqueous layer being created between the fuel and the foam bubbles. Foams that were able to create this layer became known as ‘film forming foams’.
With many years of development and a limited number of foam manufacturers, manufacturing foam products following a similar formulation, it is understandable that the fire-performance standards and associated design standards were based on the PFAS containing foams.
Were there differences between standards for PFAS containing foams?
Yes – absolutely! When you consider what could be called geographically based standards from UL and FM, over EN, then EN 1568 adopted a rating system and EN 13565-2 (the foam system design standard) applied correction factors on the minimum application rates depending on the fire-performance rating achieved in the EN 1568 fire test. UL and FM adopted a pass/fail approach but tied the fire-performance test into foam qualities (expansion ratio and 25% drain time) achieved with real-world discharge devices. UL and FM also had specific test criteria for foam sprinklers whereas EN just stated that foam agents needed IA, IB or IC rating to be used in non-aspirated sprinklers.
Industry standards and associated performance test standards already existed for Marine (IMO), ARFF (ICAO), DOD (US MIL SPEC) and some quality-assurance test standards such as developed by the LASTFIRE Programme or GESIP also existed for PFAS containing foams.
Foam manufacturers, end users and the standards bodies, however, had some 50 years of experience and the knowledge that manufacturers were basically following the same basic recipe when formulating their foams. PFAS-containing foams were regarded as forgiving and with good tolerances for different fuels and different discharge devices.
Where strict adherence to a ‘UL or FM System’ was not required it was commonplace to see suppliers and consultants accepting hardware and foam that was not necessarily tested and approved together. Of course, under EN 13565-2 this was not a necessary requirement as the standard was absolutely based on the assumption that one foam with a top-side performance rating would perform the same as another foam with the same top-side performance rating.
Why has the transition to fluorine-free foam made such a difference?
In our opinion the industry is beginning to understand that we are dealing with new technologies in foam formulation. Unlike PFAS-containing foams, manufacturers are not following (at the moment) the same basic recipe. Current commercialised SFFFs are based on each manufacturer’s formulations of chemicals, have different physiochemical properties, and exhibit very different performance across different fuels and with different application techniques. Rightly, or wrongly, as SFFFs started to be marketed there was a lot ‘negative marketing’ that went beyond questioning the difference in performance to actually questioning whether or not SFFFs ‘actually worked’.
This has led to end users, specifiers and consultants questioning the ability of the foam for their application. At Fomtec we welcome these questions as this allows us to discuss the holistic approach to the transition away from PFAS-containing foams, whereby the foam concentrate is ‘part of the solution’ and needs to have been tested and approved with the foam proportioning and discharge devices. Fomtec as a manufacturer is well aware that current SFFFs are reliant on the foam blanket, and within this the stability of the bubbles, to suppress a fire, and our testing is focused on determining the limits of performance with all the discharge devices we test with, on the different fuels.
Fomtec has never tried to claim that litre for litre our Enviro SFFFs are equivalent drop-in replacements for a good quality AFFF or AR-AFFF. Like the transition from Halon 1301, Fomtec, and our competitors, are striving to make the best-performing alternative firefighting foam that meets the environmental legislative requirements as well as the firefighting performance standards.
Why the focus on the test standards?
Whether a new requirement or planning the transition away from PFAS-containing foams the end user is looking for answers on what foam to purchase/specify based on specification, suitability for their mission and, of course, price and availability. When they study most manufacturers’ data, they will be looking for statements on the approvals that the product holds.
As stated earlier in the article, the test standards are mostly written around the knowledge of the performance of PFAS-containing foams. Although in their infancy, we see that SFFFs currently do in general exhibit more sensitivity to different fuels, to the type of water used to create the foam solution, to the foam qualities generated by the discharge devices (and hence the performance of the discharge devices across their flow range/inlet pressures), and to the type of discharge device (forceful – type III, or gentle – type II).
We see that end users and consultants are now asking whether the approvals on the foam they are being offered are relevant for their real-world applications. For Fomtec we believe that the tolerances with SFFFs are currently smaller than we saw with PFAS-containing foams and this is part of the reason that the Enviro Programme includes more than 1,500 fire performance tests (so far).
How does an end user decide what test standard to apply when choosing an SFFF?
Sometimes the end user is not going to be given a choice because of the legal or insurance requirements of the location or the mission/application. For example, if they are a municipal fire brigade in Belgium, they might have a requirement to use an EN 1568 -3 and -4 approved foam, or if they are the Fire & Rescue Service at an airport in the UK that requirement may be to use the minimum of an ICAO Level B foam.
In general, the ideal situation is to apply, and request, the test standard that most closely mimics the real-world application of the end user. It is completely impractical to expect all applications to be covered, but we can look at some areas that are covered in some of the common test standards:
Fuel type:
Most standards currently work on a grouping system or have a set fuel that is used in the fire testing. When we look at hydrocarbons this is most commonly heptane, although under ICAO it is Jet A-1 or kerosene, and currently for Mil Spec it is gasoline (under the proposals for a new fluorine-free Mil Spec for land-based facilities two fire tests will be carried out on gasoline and Jet A-1).
When water-miscible fuels are considered, the usual fuels used to represent the fuel groups are IPA (for alcohols) and acetone (for ketones), although under UL and FM it is quite common to see additional fuels being added by different manufacturers.
Application type:
For a topside device such as hose lines, monitors, foam makers, water immiscible (hydrocarbons) always start their test programmes with a direct (forceful) Type III application, whereas for water-miscible (polar solvents) the programmes use an indirect (gentle) Type II application.
For EN 1568-3, ICAO and IMO the nozzle is fixed for the duration of the application, whereas for UL and FM once 90% control is achieved an operator is allowed to pick up the nozzle and to move around two sides of the test pan. For the DOD Mil Spec the operator manual fights the fire immediately and is allowed to move all the way around the circular test pan. For the water-miscible fuel fires under all the fire-performance test standards the application uses a fixed nozzle and the foam is directed at a backboard on the test pan and allowed to slide down the board onto the fuel surface.
Standard (non-aspirated) and foam/water sprinklers (aspirated) test protocols such as UL 162, FM 5130 and VdS require that a grid is arranged over the test pan and the test protocols define nozzle spacing, elevations and flow rates per nozzle.
Where are the deficiencies in the test standards?
Performance on different fuels with SFFFs is a major issue as even on hydrocarbons the question of just allowing heptane as a representative fuel is being asked by the standard bodies. The latest FM 5130 standard (May 2021) already states under 4.2.2.3:
‘When testing SFFF concentrate, Heptane is considered representative of hydrocarbon liquids with the following characteristics:
- Flash point equal to, or greater than, heptane,
- Vapor pressure equal to, or less than, heptane,
- Pure liquids (i.e. not blended such as gasoline/alcohol combinations)’
Data from the testing at Fomtec would indicate that grouping of the polar solvents and working with the reference fuels of IPA for alcohols, and acetone for ketones is just as problematic.
Finished foam qualities of expansion ratio and 25% drain time are extremely important with SFFFs, but many of the test protocols use a set nozzle and pressure as part of their approval that variations in foam qualities are not taken into consideration. UL and FM for their top-side approval testing do require that foam qualities used in successful fire-performance testing are matched to foam-discharge devices. At the other end of the scale the current EN design standard for foam systems EN 13565-2 has the following statement when considering non aspirated discharge devices: ‘Consult manufacturer’.
It is certainly arguable that the foam manufacturer should be able to provide good advice, but there are no standards or test protocols mentioned. It was mentioned earlier that the same EN design standard removed the requirement for foam with IA, IB or IC when considering non aspirated sprinklers, but again the change was to ‘Consult manufacturer’!
The Future
Until it’s published in black and white by the standards bodies, anything we say here is an opinion but we would like to say a ‘considered opinion’. Expect standards and testing that expands the hydrocarbon fuel testing required, and potentially some more water-miscible fuel fire tests.
We are aware that the EN 1568-3 committee is looking at adding some variation in expansion ratio into the test protocol, and hopefully they will also consider the importance of 25% drain time. We can also hope that the ‘consult manufacturer’ is withdrawn and replaced with reference to an internationally recognised test.

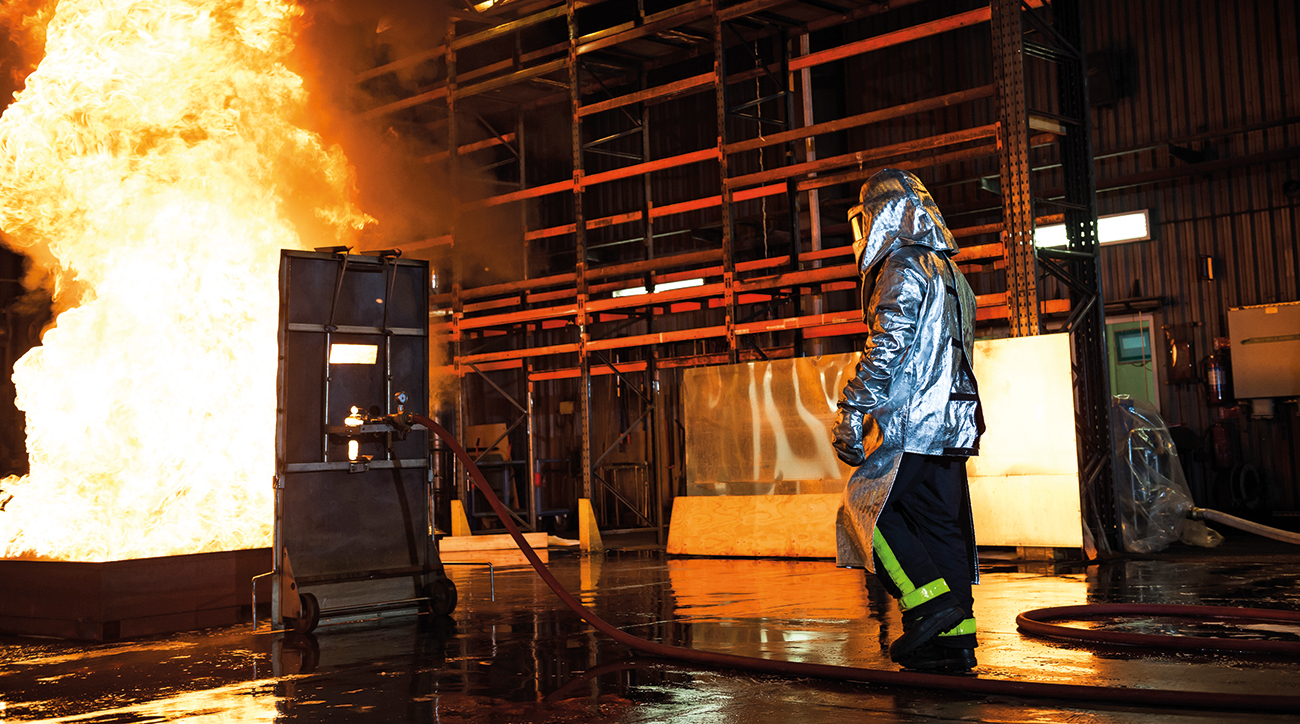

Here at Fomtec the development programme we named the ‘Enviro Programme’ continues and we are well over 1,500 fire tests now as we add data for different fuels, different foam qualities, different discharge devices and operational techniques. When a client asks questions about SFFF, our responses will be based on data not opinion!
For more information, go to www.fomtec.com
References
1. Where the article refers to PFAS-containing foams this relates to a firefighting foam where one or more of the chemicals used in the product that is ‘intentionally added’ contains, or is a precursor, for a PFAS chemical.
About the Author
John Olav Ottesen, Managing Director and founder of Dafo Fomtec AB, is a 53 year-old Norwegian with 30 years’ experience in the foam industry, spending 10 years at Tyco in various positions from the early 1990s until starting up Fomtec in Sweden in 2001. He caught the foam
bug from day one and has been a student of all aspects of foam and foam systems from that day.
